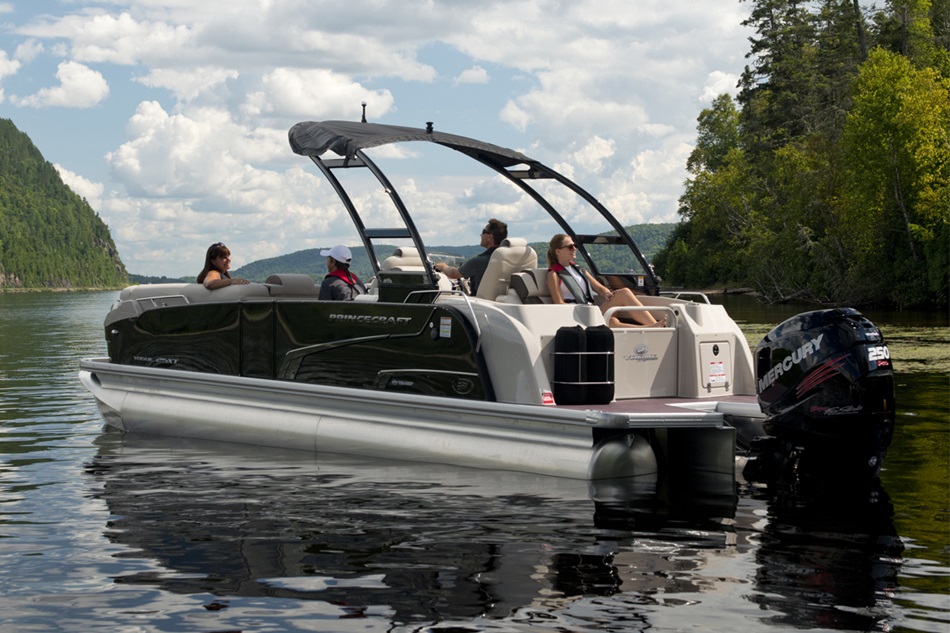

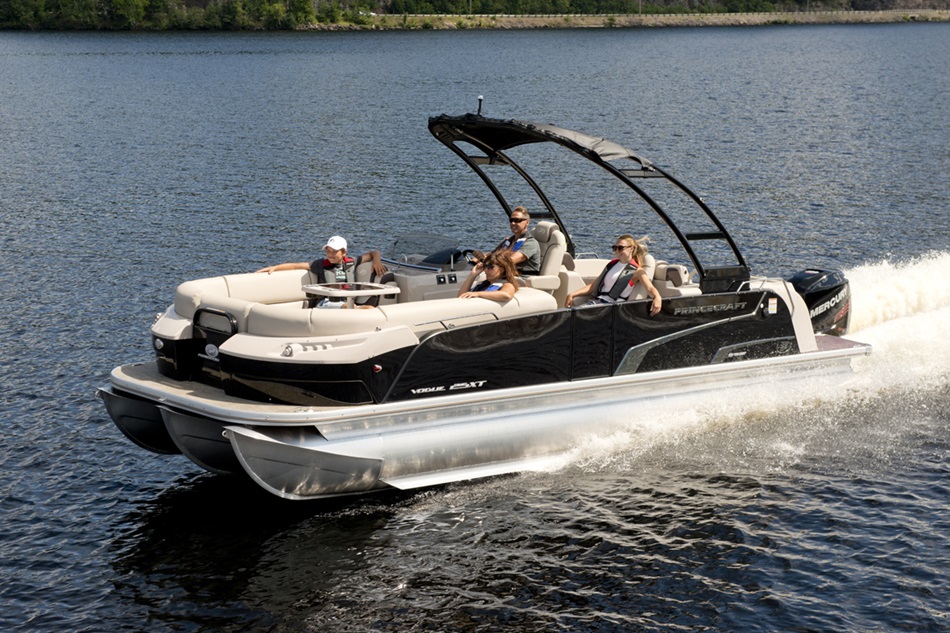

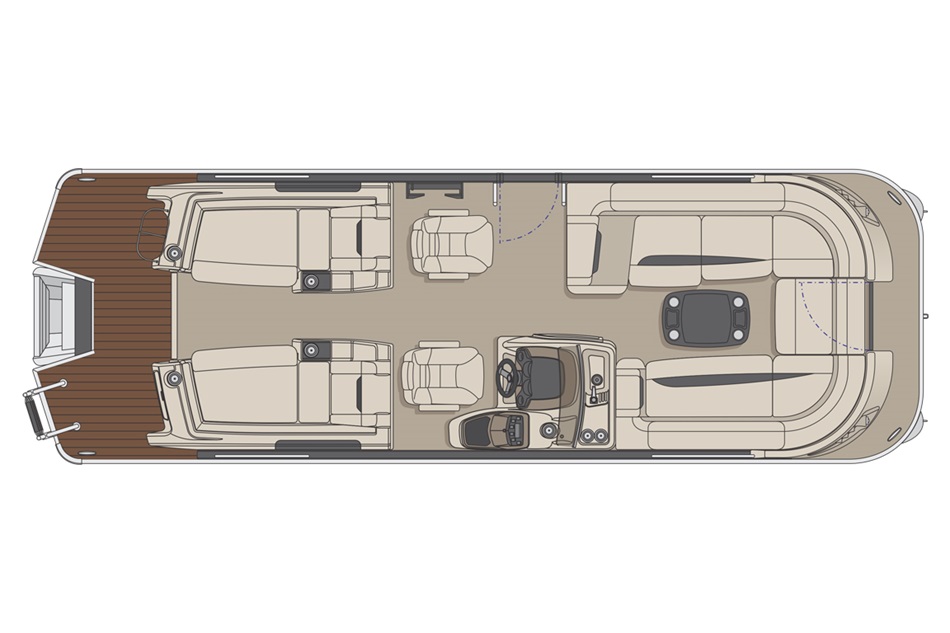

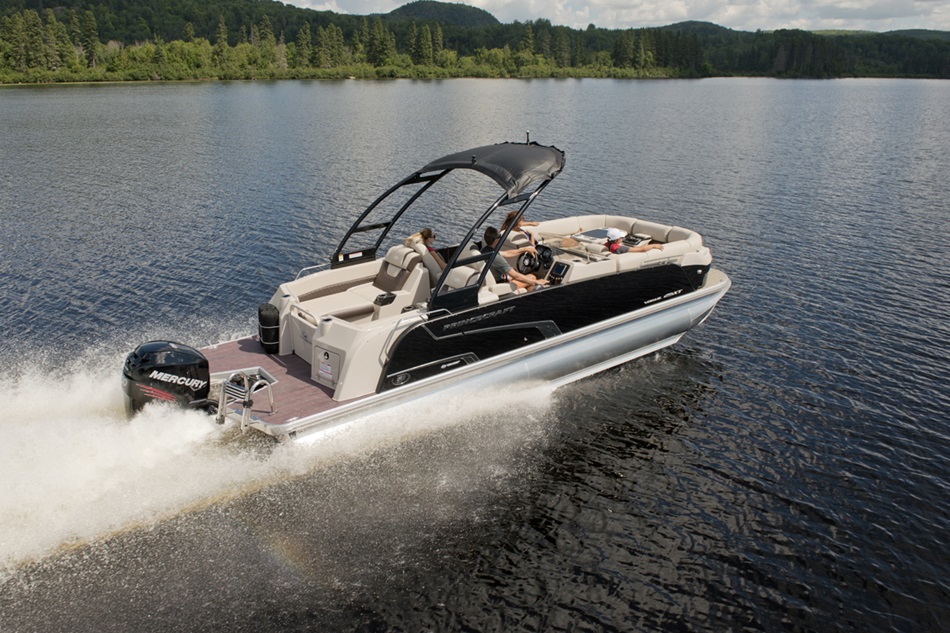

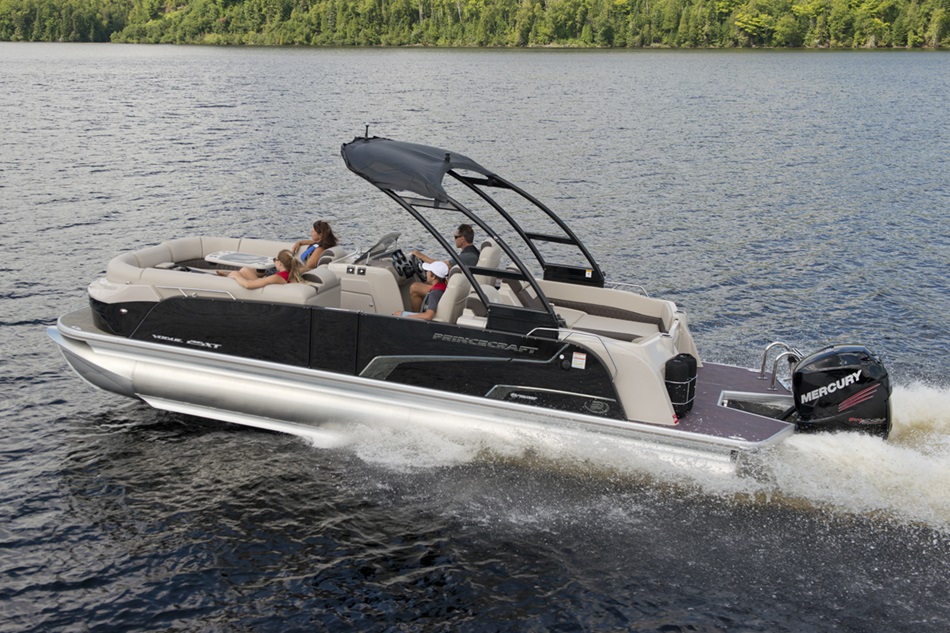

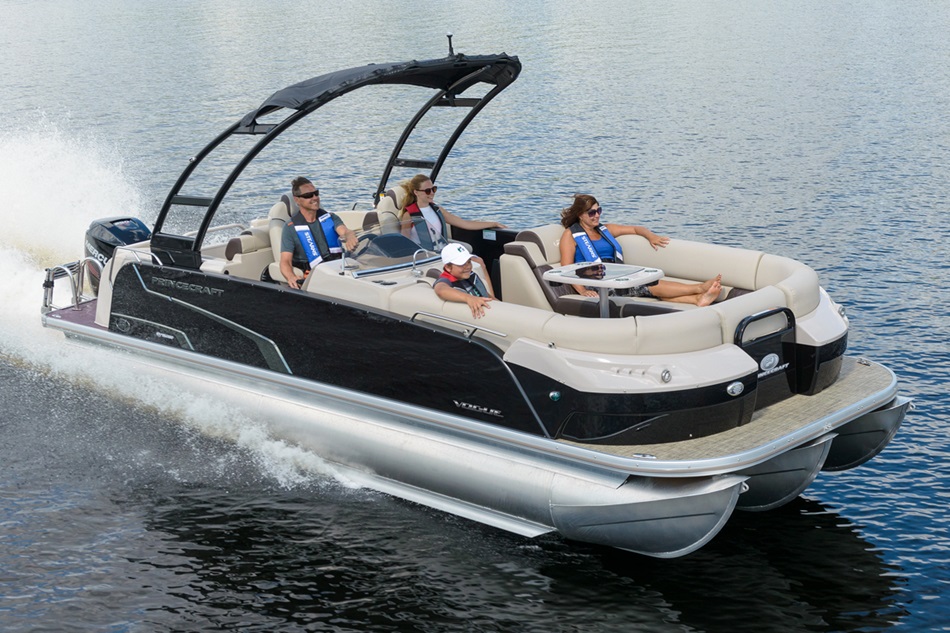

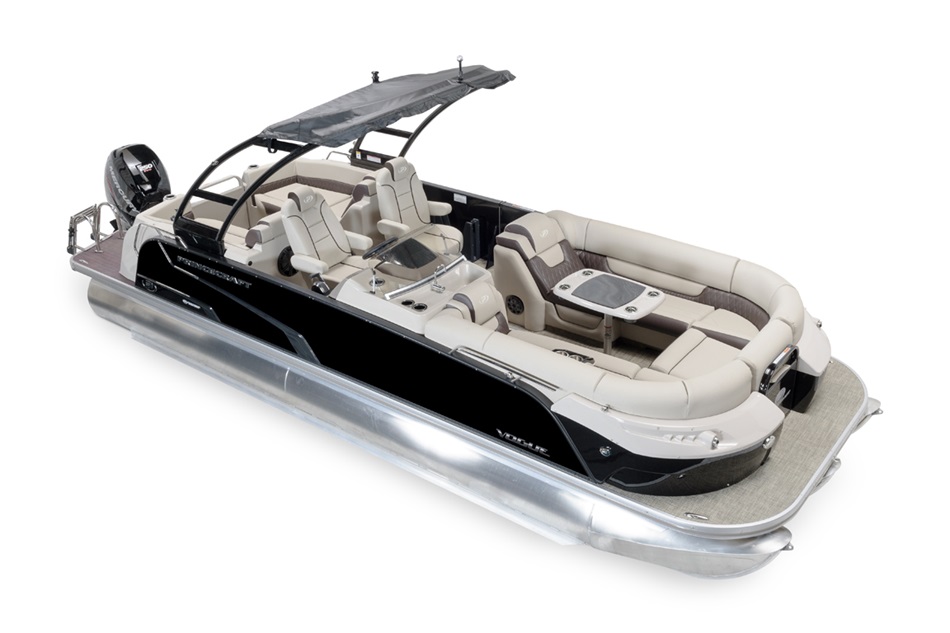

VOGUE 25 XT

This 25’-11’’ pontoon features all the comfort and convenience you enjoy at home… and more. A galley with a sink and faucet, water tank (portable), rear swim platform, ultra-plush upholstery, chaise lounges, radio, and so much more. Have a party with up to 11 friends or enjoy your favorite water sports. Rig your pontoon with an engine up to 300 HP (with the Performance configuration) and get ready for some serious fun!

GENERAL SPECIFICATIONS

  • Overall length : 7,9 m (25'-11")
  • Deck length : 7,8 m (25'-6")
  • Beam : 2.6 m (8'-6")
  • Pontoon length : 7,4 m (24'-4")
  • Pontoon diameter : 0.64 m (25")
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 1116 kg (2461 lb.)
  • Maximum HP capacity : 130 kW (175 HP)
  • Maximum weight capacity : 976 kg (2152 lb.)
  • Maximum weight person capacity : 676 kg (1490 lb.)
  • Maximum person capacity : 11
  • Maximum HP capacity : 130 kW (175 HP)
  • Maximum weight cap.acity : 976 kg (2152 lb.)
  • Maximum weight person capacity : 676 kg (1490 lb.)
  • Maximum person capacity : 11
  • Built-in : 110 L (29 U.S. gal.)

CONSTRUCTION FEATURES

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • 2 ½" heavy-duty extruded Z-aluminum cross channels
  • APS style side panels
  • Sealed pontoon bulkheads with top mounted air plug (25")
  • V-shaped aluminum engine pod
  • Pressure-treated wood deck covered with marine grade carpet
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru bow gate with lift and lock hinges
  • Walk-thru rear gate with lift and lock hinges
  • Port side gate with lift and lock hinges
  • Rear swim platform
  • Bow molded section with integrated LED lighting
  • Stainless steel bow eye
  • Lifting eyes
  • 4 stainless steel recessed cleats
  • Helm console with galley unit including sink, faucet with electric pump and portable water tank
  • Molded dash panel with black pearl woodgrain inserts and lighted switches
  • Sport tilt steering mechanism
  • 200-watt AM/FM/Bluetooth Kicker KMC 10 Stereo with integrated USB plug and auxiliary input (1/8") in console
  • 4 waterproof speakers ( 6 ½" )
  • Lowrance depth finder gauge with water temperature
  • Electric horn
  • 12V outlet
  • Push on/off console courtesy light
  • LED lighting under driver console
  • Smoked windscreen
  • Tachometer, voltmeter, speedometer, trim and fuel gauges
  • Ultra plush and heavy weight upholstery
  • Roto-Cast furniture bases and backs
  • Removable bow gate seat
  • Reclining captain's chair on slide and swivel
  • Passenger seat on swivel
  • 3 chaise lounges
  • Storage in chaise lounges' reclined section
  • 1 storage pouch
  • Storage under all lounges
  • Pop-up privacy enclosure
  • Bow black pearl woodgrain pedestal mount snack table with drink holders
  • Color coordinated or taupe bimini top
  • Quick release bimini top latches and traveling struts
  • Factory installed canvas camper enclosure & mooring cover snap fasteners
  • Storage space for the snack table
  • Stern telescopic stainless steel boarding ladder
  • Cup holders
  • Halogen docking lights
  • Navigation lights
  • LED floor mood lighting
  • Raised chromed letter logos
  • Fenders support
  • Transducer mounting bracket
  • Battery box

FACTORY INSTALLED OPTIONS

  • Vogue domed decal package (Chrome or Carbon)…upgrade exchange
  • Speed Configuration for 2-log models: lifting strakes and under-deck spray shield
  • Sport Configuration: bow central half 3rd log, lifting strakes and under-deck spray shield
  • Performance Configuration: 3rd log, under-deck spray shield, lifting strakes, 49 U.S. gal. / 185 L gas tank and 1 in-floor storage compartment
  • Under-deck spray shield (for 2-log models only)
  • Prestige Edition: Prestige Edition logo on both sides, Plus upholstery with "Reflection" vinyl and Beige or Chocolate color accent, 2-tone snack table, and LED lighting on floor, bimini top, pontoon logs, speakers and fixed cup holders
  • Prestige Platinum Edition: Prestige Edition logo on both sides, Platinum upholstery with "Reflection" vinyl, Beige or Chocolate color accent and diamond-style embroidery, 2- tone snack table, and LED lighting on floor, bimini top, pontoon logs, speakers and fixed cup holders
  • Premium Package: premium high power/sub audio system; 1 additional armrest; fiberglass raised helm; battery switch
  • Anti-skid vinyl floor covering...upgrade exchange
  • "Infinity" anti-skid vinyl floor covering...upgrade exchange
  • Sea Star hydraulic steering system with tilt wheel (included with 150 HP engine and up)... upgrade exchange
  • Side shift: Bow thruster (offered on all our configurations)
  • Black painted wakeboard tower with bimini and LED lights
  • Head with holding tank and pump out (9.8 L / 2.6 U.S. gal.)
  • Plus upholstery with "Reflection" vinyl and Beige or Chocolate color accent …upgrade exchange
  • Platinum upholstery with "Reflection" vinyl, Beige or Chocolate color accent and diamond-style embroidery …upgrade exchange
  • Bow two-tone rectangular pedestal mount removable snack table with chromed cup holders...upgrade exchange
  • 3 LED lighted cup holders on console
  • Fiberglass raised helm
  • Premium High Power/Sub Audio System (6'' Raymarine touchscreen, imaging sounder, cartography, radio module, 4 high power speakers, 10” subwoofer, and Clarion amplifier)...upgrade exchange
  • Wakeboard tower speakers
  • SmartCraft gauges (tachometer, speedometer and trim)...upgrade exchange
  • Active trim: automatic trim system
  • Underwater lighting (2 lights)
  • Stainless steel waterski tow bar
  • Barbecue (BBQ) gas grill
  • Inflatable bow filler cushion with 12 V DC or 120 V AC inflation pump, storage bag and patch kit
  • Removable padded armrest trimmed in black pearl woodgrain with cup holders
  • Battery switch (allowing the onboard power shut down)
  • Trailer cover
  • Mooring cover
  • Double bimini top
  • Half camper enclosure with front cockpit cover
  • Conversion kit for half camper enclosure into a full camper enclosure
  • Full camper enclosure
  • Full camper enclosure with privacy curtains
  • Black Metal Flake with True Mica Mist "Magnitude" Carpet (24 oz.) and TECK Vinyl on the rear platform
  • Silver Champagne with True Mica Mist "Magnitude" Carpet (24 oz.) and TECK Vinyl on the rear platform
  • Carbon Bronze with True Mica Mist "Magnitude" Carpet (24 oz.) and TECK Vinyl on the rear platform
  • Mercury 60 ELPT CT 4S
  • Mercury 75 ELPT 4S
  • Mercury 90 EXLPT CT 4S
  • Mercury 115 EXLPT CT 4S
  • Mercury 115 EXLPT PRO XS CT 4S
  • Mercury 115 EXLPT CT 4S
  • Mercury 115 EXLPT PRO XS CT 4S
  • Mercury 150 XL 4S
  • Mercury 175 L Verado L4
  • Mercury 115 EXLPT CT 4S
  • Mercury 115 EXLPT PRO XS CT 4S
  • Mercury 150 XL 4S
  • Mercury 175 L Verado L4
  • Mercury 200 L Verado L4
  • Mercury 150 XL 4S
  • Mercury 175 L Verado L4
  • Mercury 200 L Verado L4
  • Mercury 200 L Verado L6 Pro
  • Mercury 225 L Verado L6
  • Mercury 250 L Verado L6 Pro
  • Mercury 300 L Verado L6 Pro
  • Mercury 300 L Verado L6 (White)
  • 6925047-GALVANIZED TANDEM AXLE SCISSOR-LIFT STYLE TRAILER WITH BRAKES (FOR 2 LOGS ONLY)
  • Sealed hubs, swivel tongue jack and 2" ball coupler
  • Drum brakes (on all axles)
  • Factory-balanced wheels
  • Tire size: 5.30 x 12'' C
  • Weight: 337 kg (741 lb.)
  • 1563 kg (3439 lb.) carrying capacity
  • 6940047-GALVANIZED TANDEM AXLE BUNK SUPPORT STYLE TRAILER WITH DISC BRAKES
  • Carpeted fixed bunks
  • Sealed hubs, swivel tongue jack and 2" ball coupler
  • Disc brakes (on all axles)
  • Factory-balanced wheels
  • LED lights
  • Tire size: ST175/80R13C
  • Weight : 477 kg (1050 lb.)
  • 1996 kg (4391 lb.) carrying capacity
  • 6940087-GALVANIZED TRIDEM AXLE BUNK SUPPORT STYLE TRAILER WITH DISC BRAKES (must be equipped with the Conversion kit for 3-log models)
  • Carpeted fixed bunks
  • Sealed hubs, swivel tongue jack and 2" ball coupler
  • Disc brakes (on all axles)
  • Factory-balanced wheels
  • LED lights
  • Tire size: ST175/80R13C
  • Weight : 548 kg (1206 lb.)
  • 3160 kg (6952 lb.) carrying capacity
  • Conversion kit for 3-log models
  • Deluxe transom tie downs…/pair
  • Galvanized spare wheel 5.30 x 12" C with 5 lugs and bracket
  • Galvanized spare wheel ST175/80R13 C radial with 5 lugs and bracket
