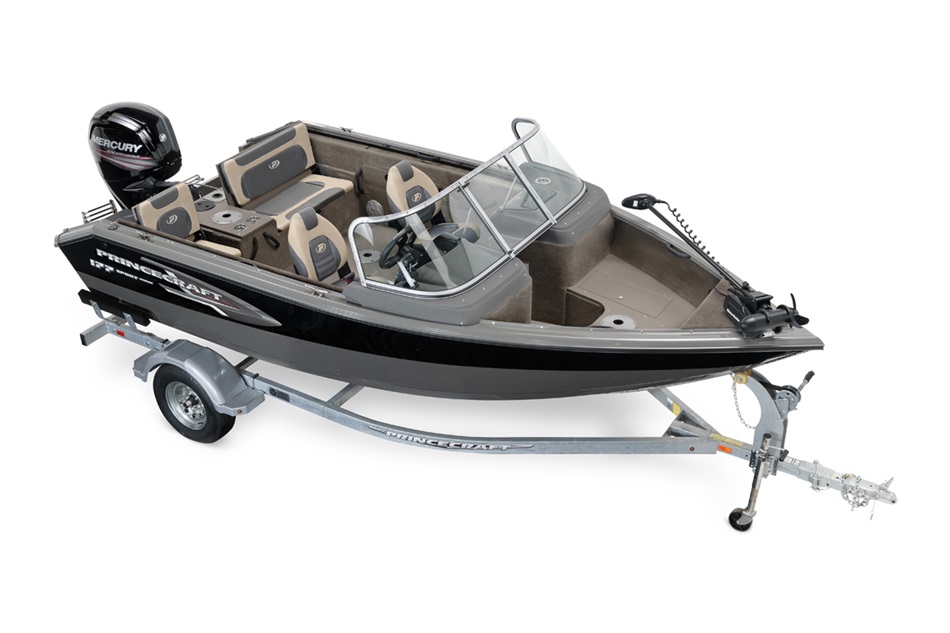

SPORT 177

Looking for the perfect, economical all-around family/ fishing boat? This product is what you are looking for. At 17’-5” and a capacity of 6 people (7 in the USA), you can power this boat up with an engine of up to 150 HP, more than enough to enjoy a perfect day.

GENERAL SPECIFICATIONS

  • Center Line : 5.3 m (17'-5")
  • Beam : 2.3 m (92")
  • Chine Width : 1.9 m (75")
  • Maximum Depth : 1.0 m (40")
  • Approximate Draft : 0.8 m (30")
  • Transom Height : 0.6 m (25")
  • Approximate Weight : 603 kg (1330 lb.)
  • Dead Rise : 15 degrees
  • Maximum HP Capacity : 112 kW (150 HP)
  • Maximum Weight Capacity : 713 kg (1572 lb.)
  • Maximum Weight Person Capacity : 450 kg (992 lb.)
  • Maximum Person Capacity : 6
  • Max. HP cap. : 112 kW (150 HP)
  • Max. weight cap. : 713 kg (1572 lb.)
  • Maximum weight person capacity : 413 kg (910 lb.)
  • Maximum person capacity : 7
  • Bottom : 2.5 mm (.100")
  • Side : 1.8 mm (.072")
  • Built-in : 91 L (24 U.S. gal.)

HULL AND DECK FEATURES

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • High gloss exterior High Solids urethane paint and decal package
  • Reverse chine hull design
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Twin plating at the chine
  • Rigging tube under flooring (console to bow)
  • Rigging tube under flooring (stern to console)
  • Stainless steel bow and stern eyes
  • 4 chromed cleats
  • BOW RAISED CASTING PLATFORM
  • Ice chest
  • Electric-filled aerated livewell
  • Seat mount floor base
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • 2 fold-down jump seats
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Rod straps
  • 7 foot lockable rod storage compartment without support
  • In-floor lockable rod organizer for 4 rods
  • 12V or 24V bow trolling motor plug & receptacle with wiring harness
  • Bow mounting trolling motor pad
  • BOW LIVEWELL (30", 64 L / 17 U.S. GAL.)
  • Electric-filled aerated [ ProFlo ]
  • Intermittent recirculation
  • Overflow
  • Anti-spill cover
  • Insulated lid
  • Protection filter on the filling pump
  • STERN LIVEWELL (44", 77 L / 20 U.S. GAL.)
  • Electric-filled aerated [ ProFlo ]
  • Intermittent recirculation
  • Overflow
  • Light
  • Anti-spill cover
  • Insulated lid
  • Protection filter on the filling pump
  • 6 floor seat bases
  • 2 folding seats with no-pinch hinges
  • Twin consoles with steering system
  • Walk-thru tinted curved tempered glass windshield with door
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack dual cable steering system
  • Storage under driver's console with extensible cargo net
  • Deep-cycle battery storage under the port side console
  • Tachometer
  • Speedometer
  • Fuel gauge
  • Electric bilge pump
  • 2 bow handles
  • Navigation lights
  • Canvas top snap fasteners
  • Interior light(s)
  • 8 handles
  • 4 cup holders
  • 3 battery holders
  • Stern telescopic boarding ladder
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl
  • Princecraft special decal package...upgrade exchange
  • Techno Package: 160-watt Jensen stereo, platform, and battery switch
  • Techno Package: 200-watt Clarion stereo, platform, and battery switch
  • Marine grade carpeted floor covering
  • Tilt steering with slider for captain's chair... upgrade exchange
  • SeaStar hydraulic steering system with tilt wheel and slider for captain's chair... upgrade exchange (included with 150 HP engine and up)
  • Co-Pilot system for Minn Kota PD V2 trolling motor
  • Kicker option: Mercury 9.9ELPT BF 4S Pro Kicker with remote control and connecting rod (must be ordered with the hydraulic steering system and a trailer with brakes)
  • Deluxe folding seats…upgrade exchange (replacing standard seats)
  • 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8") in console
  • 200-watt AM/FM/CD/Bluetooth Clarion Stereo compatible SAT with integrated USB plug and auxiliary input (1/8") in console
  • SmartCraft gauges (tachometer, speedometer and trim)…upgrade exchange
  • Active trim: automatic trim system
  • MotorGuide W55 wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
  • MotorGuide W75 wireless trolling motor (24 volts, 54", 75 lb. peak thrust)
  • MotorGuide Xi5 wireless trolling motor (24 volts, 54'', 80 lb. peak thrust)
  • Minn Kota 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
  • Minn Kota 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with iPilot and bracket
  • Minn Kota 70 PD V2 trolling motor (24 volts, 54", 70 lb. peak thrust) with bracket
  • Minn Kota 70 PD V2 trolling motor (24 volts, 54", 70 lb. peak thrust) with iPilot and bracket
  • Onboard charger for 1 - 12V battery (ProSport 6)
  • Onboard charger for 2 - 12V batteries (ProSport 20)
  • Bow rider seat cushions
  • Removable ski pylon
  • Seat Package: folding seat, post (9''), and seat mount with auto-lock handle
  • Seat Package (Deluxe): folding seat, post (9''), and seat mount with auto-lock handle
  • Bicycle Seat Package: bicycle seat, adjustable post, and seat mount with auto-lock handle
  • Downrigger supports (grey)
  • Parallel arm starboard side wiper
  • Sonar Lowrance Hook-3x
  • Sonar/ GPS Lowrance Hook-7 (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance Elite-7 (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance HDS-7 (the bathymetric depth maps are not included)
  • Sonar Hummibird PiranhaMAX 4
  • Sonar/ GPS Humminbird Helix 5 (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 (the bathymetric depth maps are not included)
  • Raymarine multifunction touchscreen A78 DownVision/ GPS
  • Raymarine multifunction touchscreen A98 DownVision/ GPS
  • Trailer cover (black)
  • Complete stand-up high top with tonneau cover, curtains connected to windshield and back extension
  • Engine pod platform
  • Livewell minnow bucket
  • Battery switch: allowing the onboard power shut down (with power distribution bar)
  • Red with vinyl floor covering
  • Black with vinyl floor covering
  • Mercury 115 EXLPT 4S
  • Mercury 115 EXLPT PRO XS 4S
  • Mercury 150 XL 4S
  • Standard galvanized bunk style trailer
  • Single axle with swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lights
  • Factory balanced steel wheel
  • 1 071 kg (2 356 lb.) carrying capacity
  • Radial tire size : ST205/75R14 C
  • Weight : 229 kg (503 lb.)
  • Galvanized trailer with swivel tongue jack, disc brakes, swing tongue, and 14'' radial tires...upgrade exchange
  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • ST205/75R14 C galvanized spare wheel with 5 lugs and bracket
  • 2- 14'' aluminum mag wheels with cap & nuts…upgrade exchange on galvanized trailer
  • 14" aluminum mag spare wheel and bracket (excluding cap and nuts)
  • Galvanized
